Paxton-Mitchell

Paxton-Mitchell 260-B

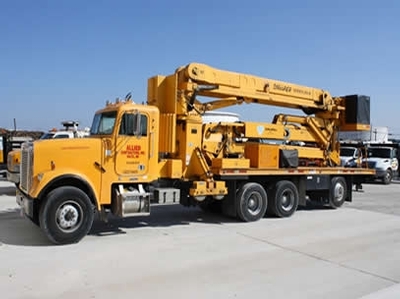

ACI Unit #236 Unit Model: Paxton-Mitchell 260-B

The 65' long reach provided by this inspection unit allows a user to inspect both sides of a bridge from one set up position. The efficiency and abilities of this unit cuts down on time needed to reach all parts of a bridge and lowers inspection costs. The truck is outfitted with a large three man basket and heaters.

Category: Under Bridge Inspection Trucks
Online Request Form:  Request A Quote



Under Bridge Inspection Equipment Specifications and Features

Specifications: Features:
Horizontal Under Bridge Reach:  up to 65’ Mesh Man Basket
Optional 4th Telescoping Boom: Yes (10’) Bucket Weight Capacity: 600lbs
Fence Clearance: Approximately 10’ min. Bucket Size: 5’x3’x4'h
Deploys: Left and Right Bucket Type: 3-Man Basket
GVW: 66,000lbs Outriggers:Yes
Length: 41'2”     Height: 13’8” Heated Buckets: Yes
Manufacturer Link: Paxton-Mitchell.com Flight Plan: click here
